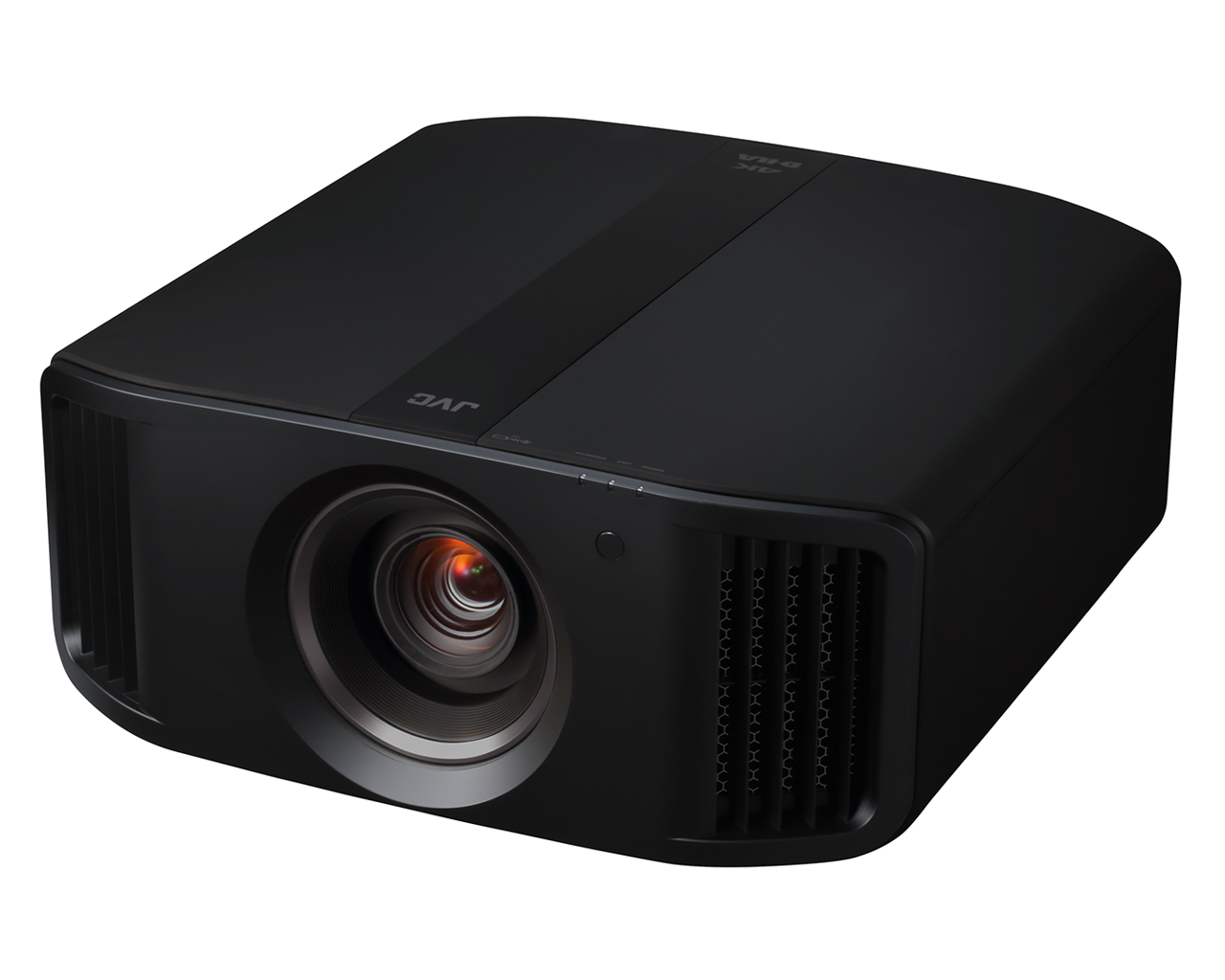

DLA-NP5 4K HDR Projector

D-ILA home theater projector features a 4K120p input to reproduce full 4K-resolution (4096 x 2160 pixels) image. The projector is driven by three 0.69-inch native 4K D-ILA devices, and 17-element, 15-group all glass lens with 65 mm diameter to project high-resolution images to every corner of the screen with a brightness as high as 1,900 lumens. 4K120p input also makes the projector ideal for gaming when combined with Low Latency mode. Compatible with the latest HDR10/HDR10+, with new Frame Adapt HDR Generation 2.
?
Frame Adapt HDR Generation 2
The Frame Adapt HDR technology, which uses a proprietary algorithm to instantaneously analyze the maximum brightness of HDR10 content per frame and adjust the dynamic range in real time to the optimum range for video projection on projectors, has evolved into the second generation. As the culmination of the HDR image processing technology that we have cultivated up to now, we have completely reexamined the tone mapping algorithm in accordance with the scene and frame, and have achieved HDR images with higher definition and full of three-dimensional feeling by suppressing the whiteness especially in the high brightness area.
?

?
4K Native Resolution
Equipped with refined 0.69″ native 4K D-ILA device and newly developed digital driver LSI for native 4K resolution.D-ILA projectors continue to evolve for the better. The latest three models feature an original native 0.69″ 4K D-ILA devices, which were first adopted on model DLA-Z1; this device has been improved with process refinements on planarization and reflection efficiency to achieve higher contrast and brightness. Additionally, a dedicated driver LSI was also enhanced to simultaneously drive each of the three (R/G/B) native 4K D-ILA devices at high-speed 120fps. As a result, precise and smooth image projection unique to 4K native can be achieved with the combination of a new device and new driver LSI.
?
Essential all-glass lens to depict all the data in the 4K images
The DLA-NP5 is equipped with an 17-element, 15-group all-glass lens featuring a full aluminum lens bar. To project high resolution 4K images to every corner of the screen.
?

?
Unparalleled black level achieved through high contrast ratio and high luminance?
The 0.69-inch 4K D-ILA device and the optical engine employing a wire grid alone realize a native contrast of 40,000:1 on the DLA-NZ7. But on top of that, in combination with the dynamic light source control that automatically controls the output of the laser light source by analyzing the input video source, an astonishing dynamic contrast of ?? (infinity) :1 has been achieved not only for the high-end model but for all models equipped with the BLU-Escent light source. The synergistic effect of the ultimate dynamic range created by the high luminance will allow you to experience impressive, high-quality 8K images full of reality.
iability-proved BLU-Escent Laser Diode for exceptional brightness and longevity
?
New algorithm on the laser dynamic control
Laser Dynamic Dimming control was previously based on the average luminance of the entire scene. With the new mode, adjustment is based on peak luminance. This results in images with increased dynamic range. In particular, the new mode improves reproduction of content such as stars twinkling in pitch blackness and nightscapes. In addition, even images with low peak luminance can be enjoyed with a greater sense of contrast.
?

?
?
